EK65HP

Applications

Kelly Bar

The EK65HP

TECHNICAL SPECIFICATIONS

Standard Chassis: Cat® 317 Next Gen
Installed Power: 136 hp 102 kW
Maximum Torque: 67,150 ft.lbs 9,310 kg.m
Maximum Diameter 5 ft 3 in 1,600 mm
Short Mast
Std. Depth Interlocking Kelly (5 El.)
41 ft 1,200 mm
Long Mast
Std. Depth Interlocking Kelly (5 El.)
80 ft 24,400 mm
Crowd Force: 27,060 lbf 12,300 kgf
Crowd Cylinder Stroke: 6 ft 3 in 1,920 mm
Main Winch Line Pull 27,120 lbf 12,330 kgf
Minimum Transport Weight 55,000 lb 24,947 kg
Operation Weight 60,000 lb 27,125 kg
Learn More

About the EK65HP

The EK65 is the smallest machine CZM builds. It is a cylinder crowd drilling rig mounted on a Cat® 317 Next Gen. It is a very popular model for applications where space and overhead height are limited. It can be easily converted from Long Mast to Short Mast. It is a one load machine, with easy set up, completely self erecting.

Base:
  • The new Cat® 317 Next Gen powered by a fuel efficient Tier 4 Final C4.4 ACERT engine.
  • Equipped with Cat® Vision Link that allows management to monitor machine operations and maintenance data online.
Undercarriage:
  • Caterpillar® fixed undercarriage VH3170/2690/700.
Mast:
  • Reinforced mast, with high resistance steel Weldox 700.
Main Winch:
  • Special groove for better cable winding and longer cable life.
  • Press-roller included.
  • 2 gears allows for both high speed and high pulling force.
  • Automatic gear shifting, for seamless operation, high production.
  • Automatic down the hole winch stop.
  • Freewheeling winch during crowd operation.
  • Hydraulic and mechanical brake.
  • Hydraulic measurement of pulling force displayed in the cabin.
Rotary:
  • Robust design, with 2 slewing bearings on top and bottom, robust pinion and main gear.
  • 1 group of Hydraulic Motor / Planetary Gears for high torque and long life.
  • Anti-cavitation, anti-shock and cooling system for longer hydraulic motor life.
  • Power-shift for High spin-off speed (120rpm) for quick discharge of soil.
  • 3 operation speeds and 3 spinoff speeds. For high torque and high speeds.
  • Automatic gear shifting, for seamless operation, high production.
  • Exchangeable keys, bolted. No need to rebuild keys by welding inside the rotary.
  • Hydraulic measurement of torque displayed in the cabin for the operator.
Cab:
  • AM/FM Radio, Air conditioning/Heating.
  • ROPS cab & Top protection.
  • LCD monitor for Engine and Hydraulics computer, with diagnostic system.
  • CZM Canbus System for Drilling Monitoring with auto functions.
EK65HP

Video Tour

EK65HP

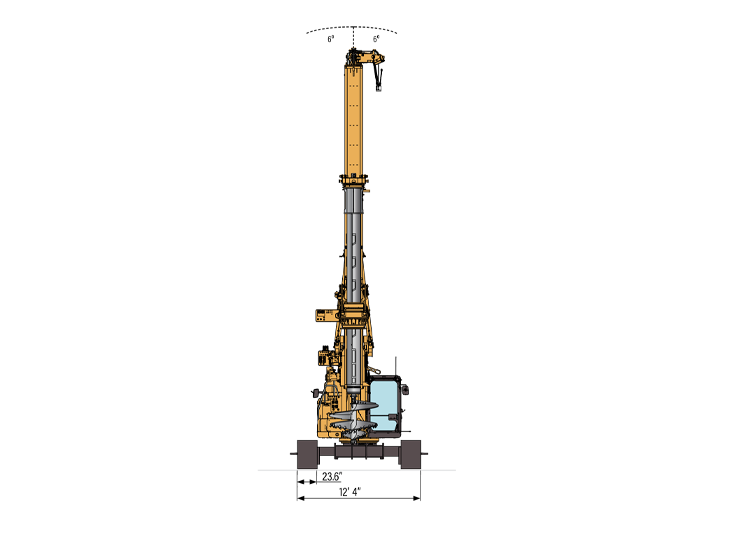

Technical Drawings

EK65HP

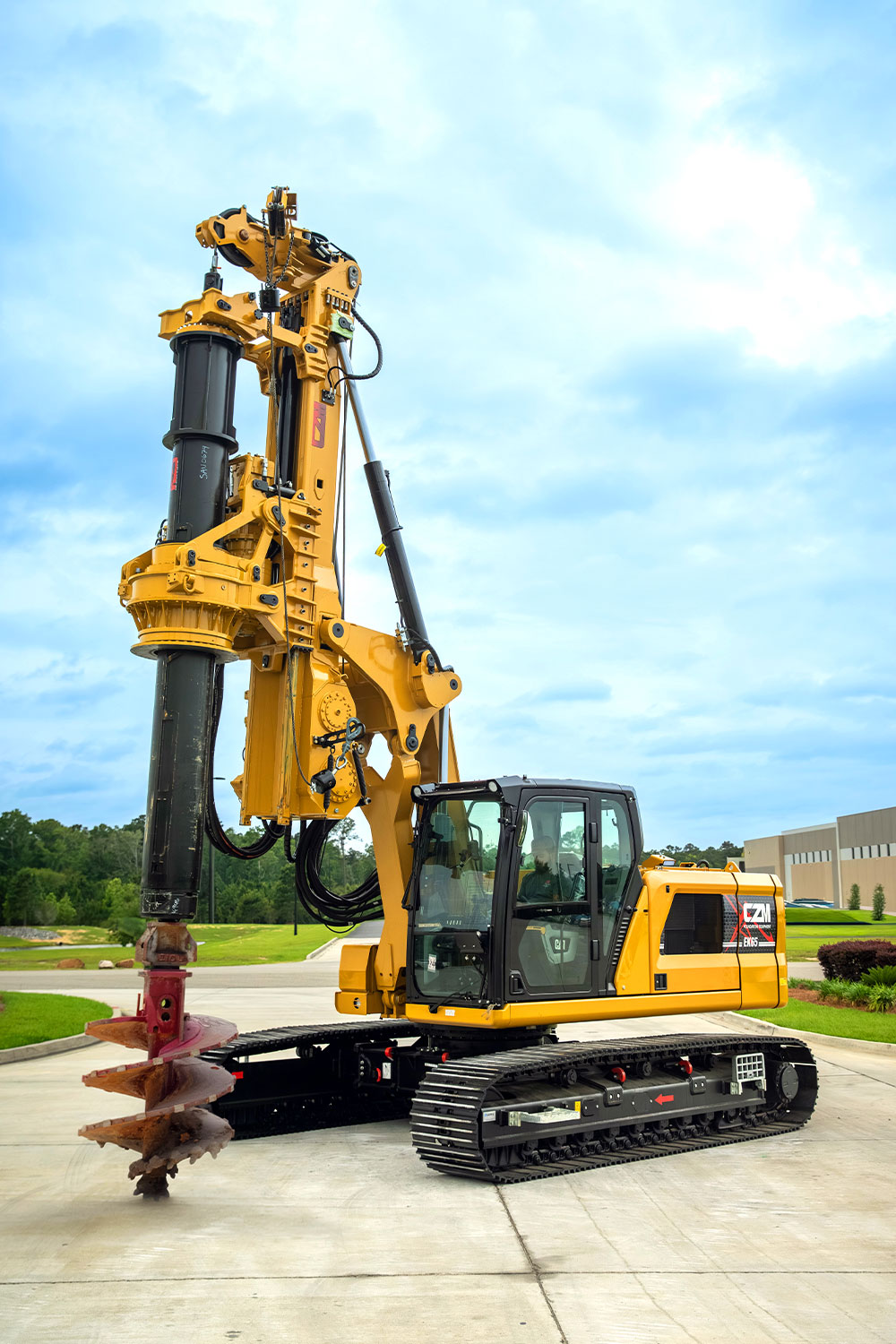

Photo Gallery
