EK250

Kelly Bar

The EK250

TECHNICAL SPECIFICATIONS

Standard Chassis: Cat® 340 Next Gen
Installed Power: 346hp 258 kW
Maximum Torque: 234,500 ft.lbs 31,800 kg.m
Maximum Diameter 13 ft 4,000 mm
Standard Drilling Depth: 157 ft 48,000 mm
Maximum Drilling Depth: 200 ft 61,000 mm
Crowd Force: 73,326 lbf 33,000 kgf
Crowd Cylinder Stroke: 19 ft 8 in 6,000 mm
Main Winch Line Pull 58,700 lbf 26,500 kgf
Minimum Transport Weight 117,000 lb 53,200 kg
Operation Weight 190,000 lb 86,400 kg
Learn More

About the EK250

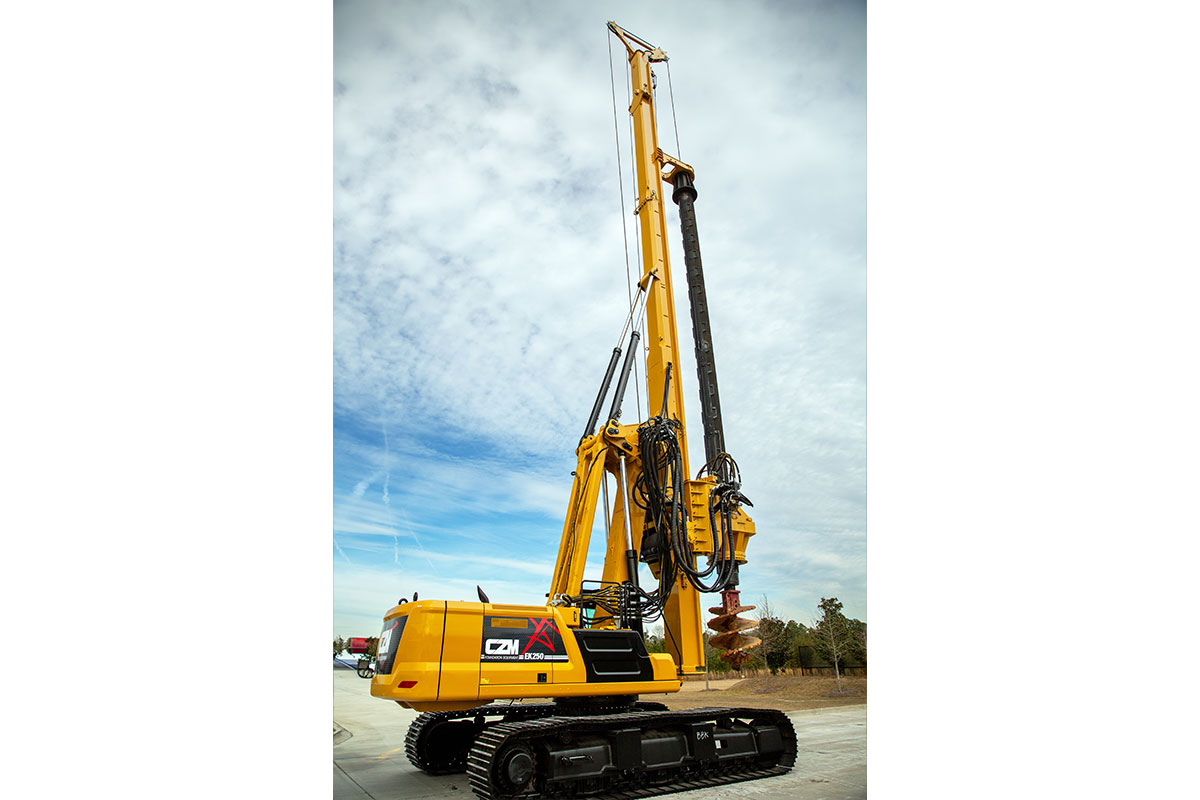

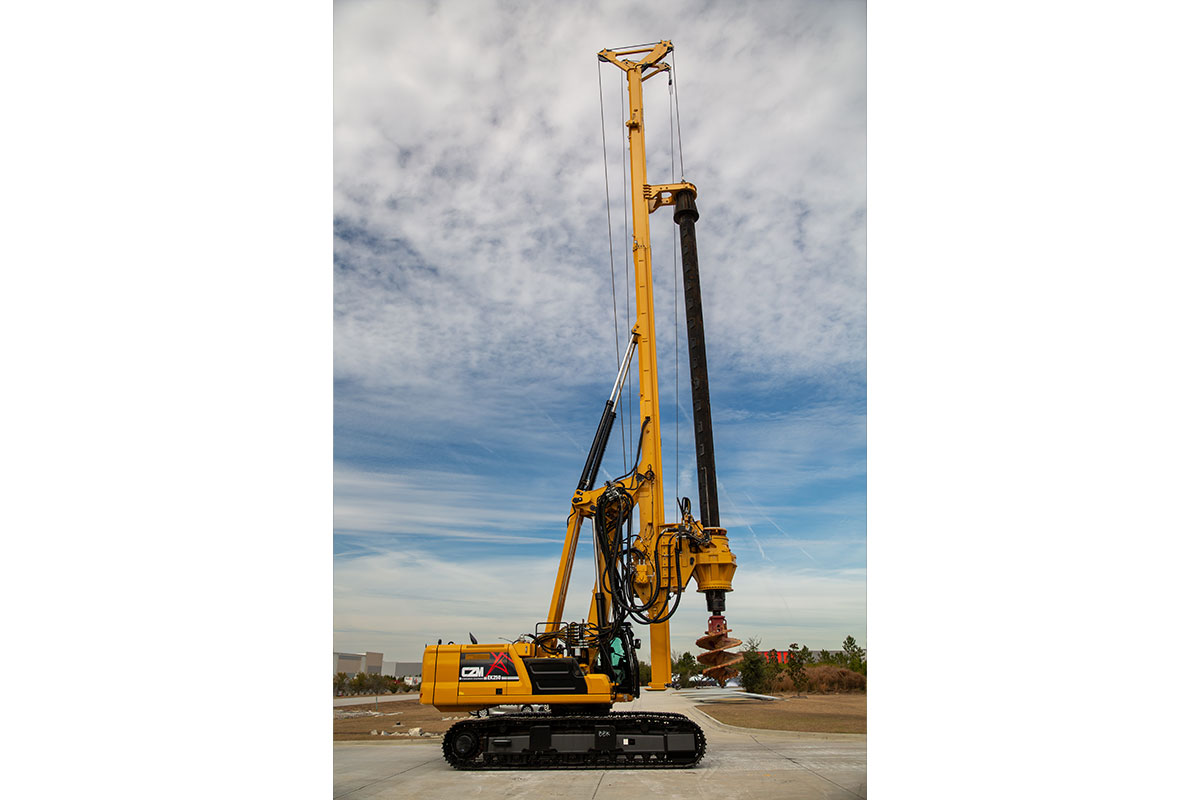

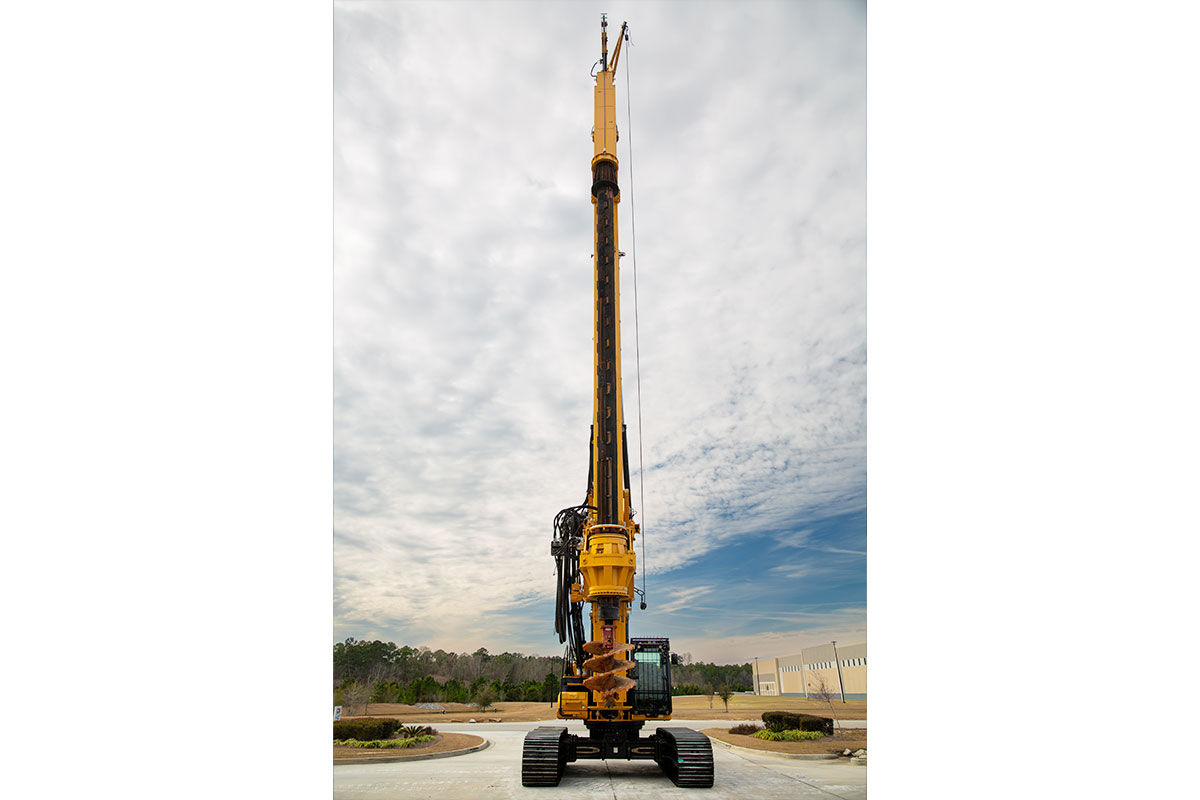

The EK250 is a cylinder crowd drilling rig mounted on a Cat® 340. It is CZM’s most popular machine for drilling on very hard rock. The size and weight of the rotary and kelly bar allow a high effective crowd force. It is deal to handle large diameter, deep holes on hard rock. It can be supplied as a Standard or Short Mast configuration.
Base:
  • The new Cat® 340 Next Gen powered by a fuel efficient Tier 4 Final C9.1 ACERT engine.
  • Equipped with Cat® Vision Link that allows management to monitor machine operations and maintenance data online.
Undercarriage:
  • Caterpillar® variable undercarriage VH5000/4300/800. Reinforced frame H style variable undercarriage.
Mast:
  • Reinforced mast, with high resistance steel Weldox 700.
Main Winch:
  • Special groove for better cable winding and longer cable life.
  • Press-roller included.
  • 2 gears allows for both high speed and high pulling force.
  • Automatic gear shifting, for seamless operation, high production.
  • Automatic down the hole winch stop.
  • Freewheeling winch during crowd operation.
  • Hydraulic and mechanical brake.
  • Hydraulic measurement of pulling force displayed in the cabin.
Rotary:
  • Robust design, with 2 slewing bearings on top and bottom, robust pinion and main gear.
  • 2 groups of Hydraulic Motor / Planetary Gears for high torque and long life.
  • Anti-cavitation, anti-shock and cooling system for longer hydraulic motor life.
  • Power-shift for High spin-off speed (120rpm) for quick discharge of soil.
  • 3 operation speeds and 3 spinoff speeds. For high torque and high speeds.
  • Automatic gear shifting, for seamless operation, high production.
  • Exchangeable keys, bolted. No need to rebuild keys by welding inside the rotary.
  • Hydraulic measurement of torque displayed in the cabin for the operator.
Cab:
  • AM/FM Radio, Air conditioning/Heating
  • ROPS cab & Top protection.
  • LCD monitor for Engine and Hydraulics computer, with diagnostic system.
  • CZM Canbus System for Drilling Monitoring with auto functions.
EK250

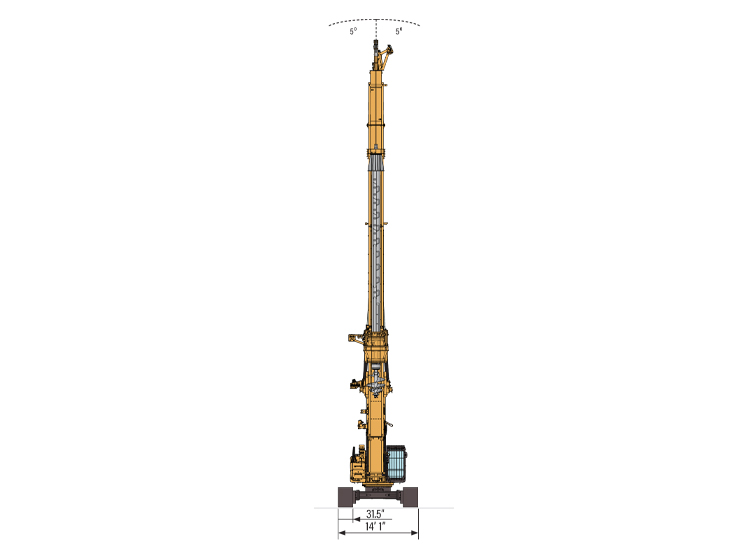

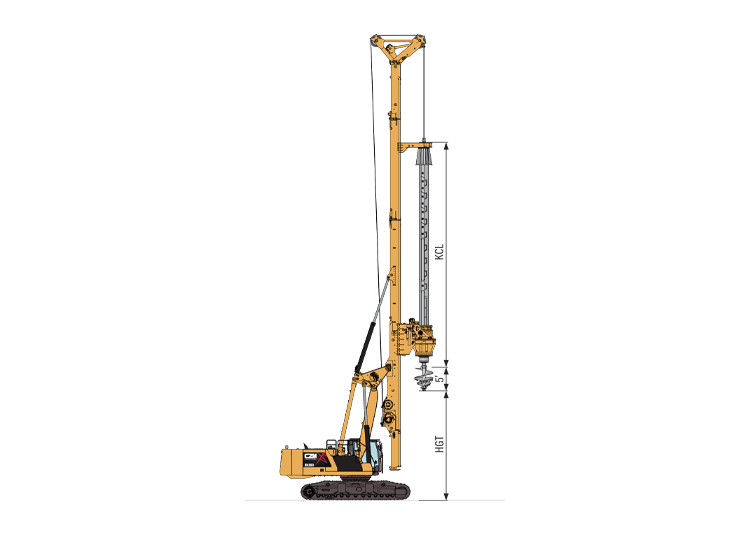

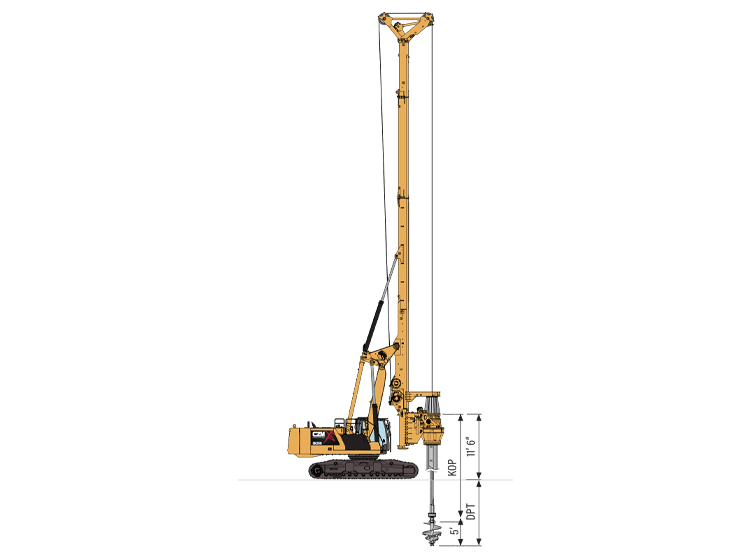

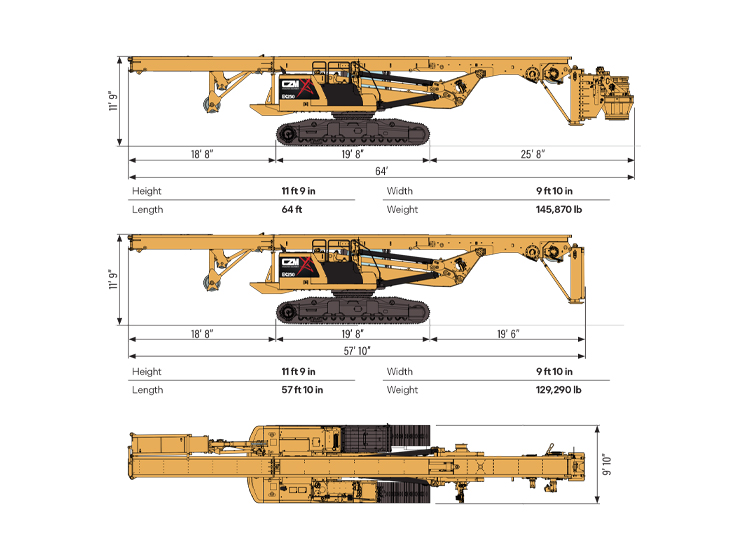

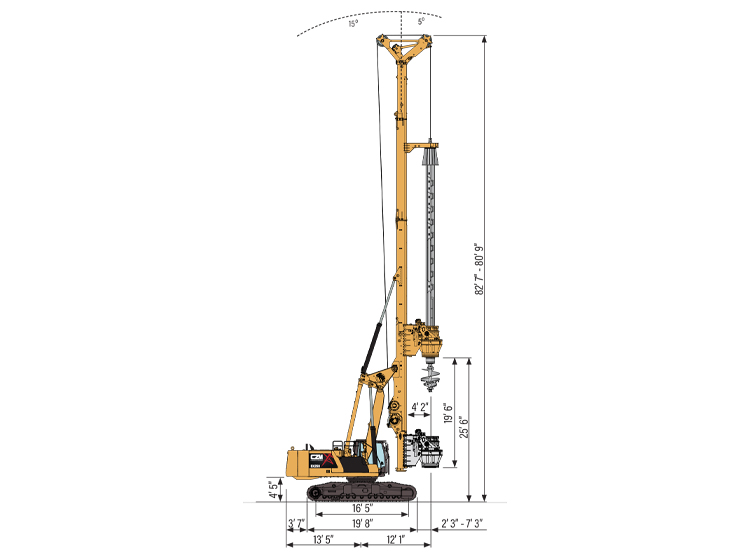

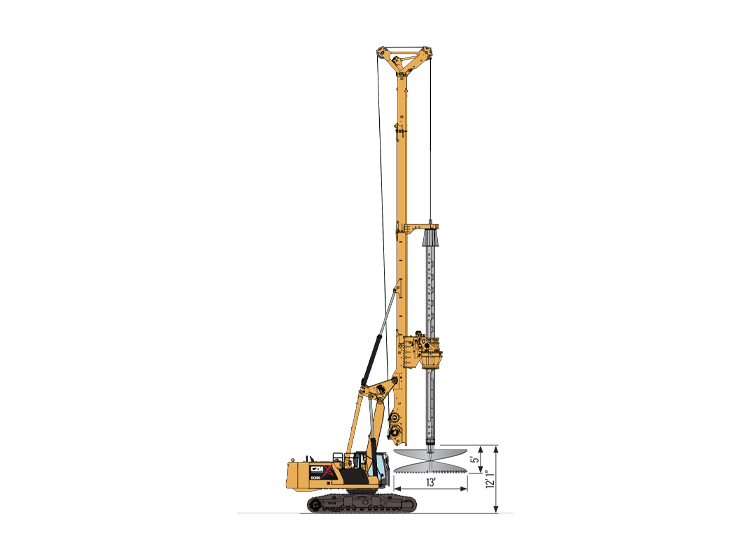

Technical Drawings

EK250

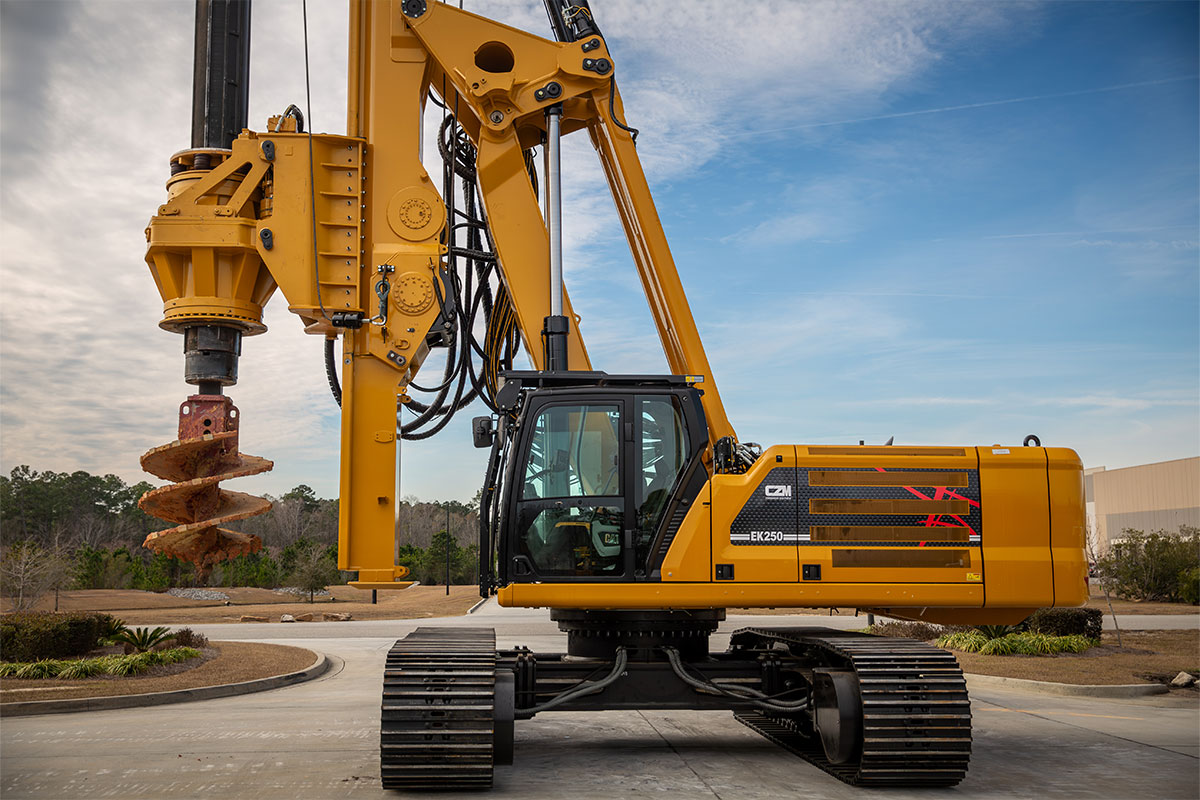

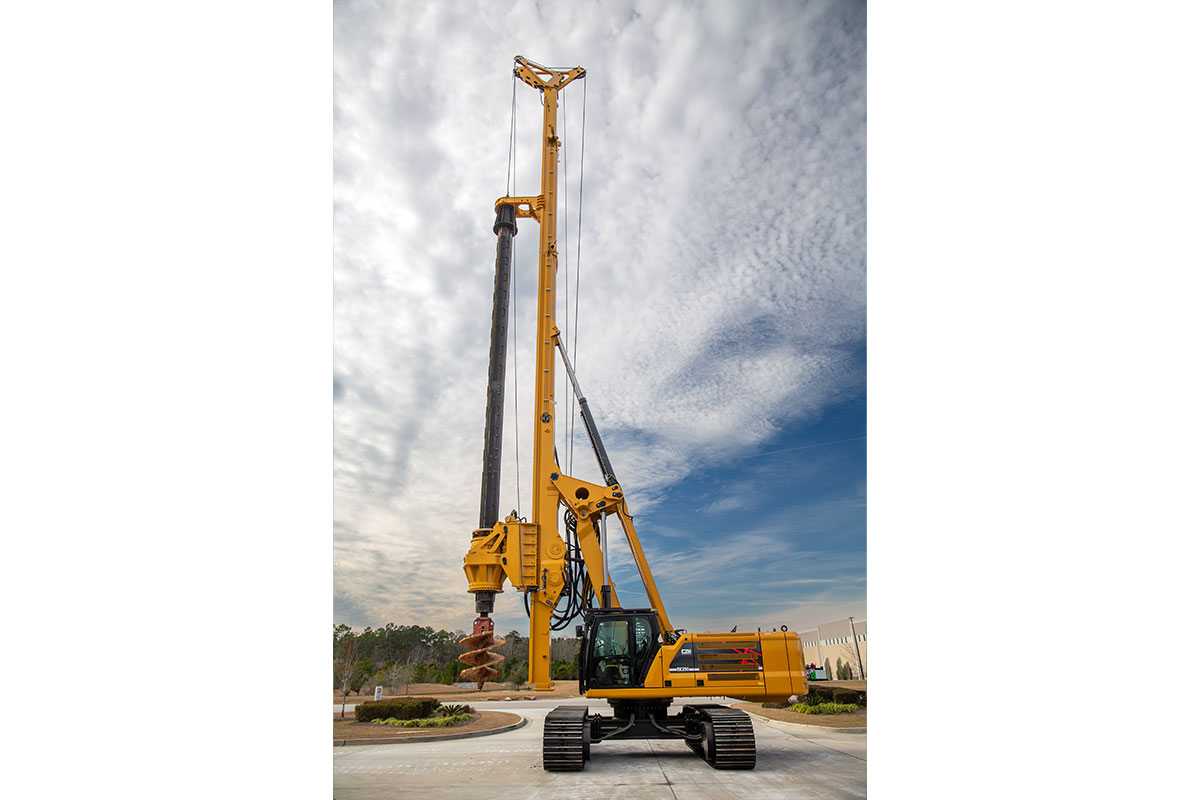

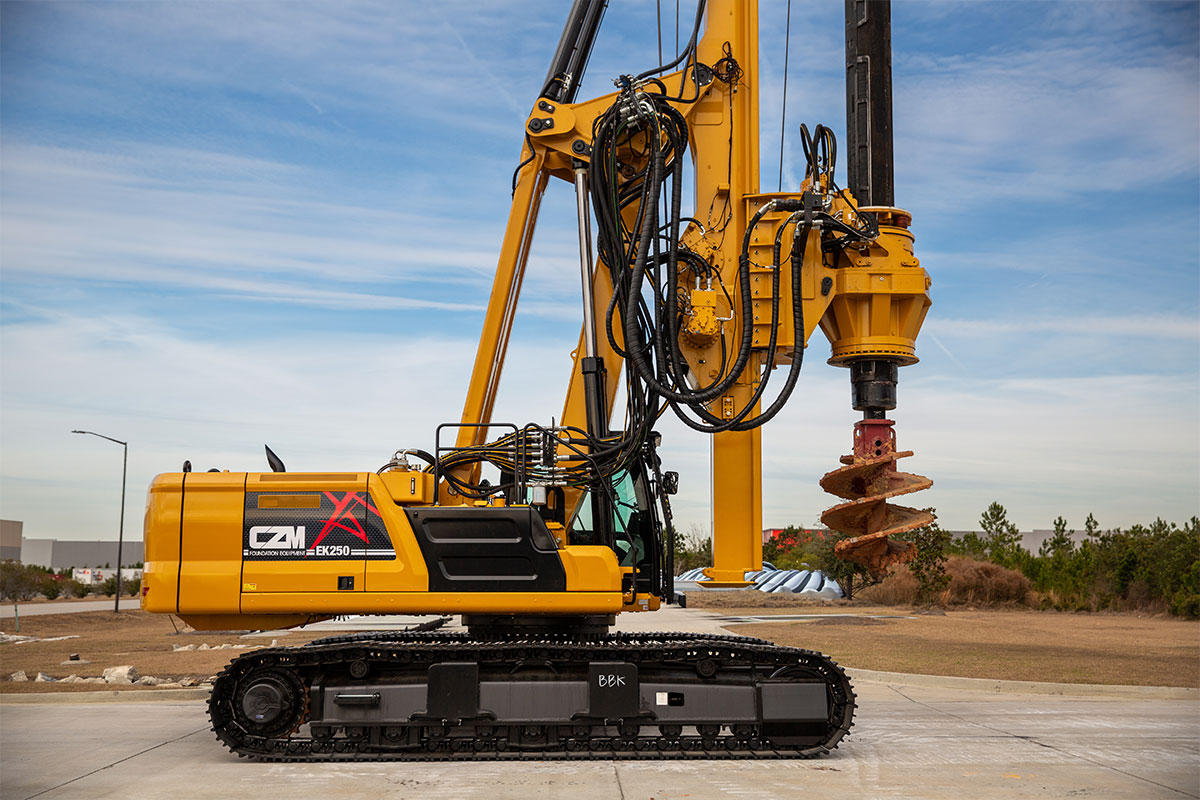

Photo Gallery
